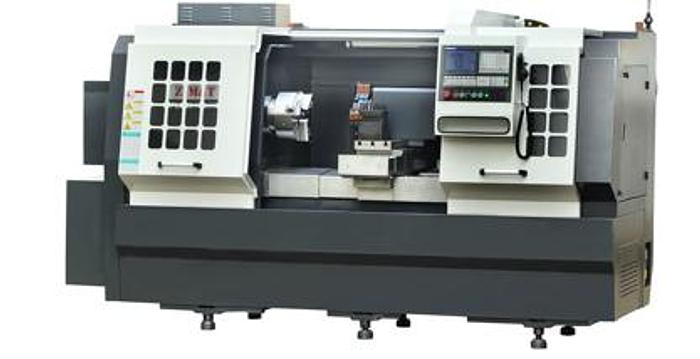

Toolroom Flatbed CNC lathe

Swing over bed = 550mm

Max turning length = 1250mm

Max swing over slide = 320mm

X axis travel = 280mm

Z axis travel = 1500mm

Chuck = 12" 3 Jaw

Spindle bore = 80mm

Spindle speed = 1600 rpm

Max bar diameter = 70mm

Spindle motor = 11KW

XZ axis rapid traverse = 9/12/m/min

Control = Syntec

8 station hydraulic turret

Tailstock taper - MT5
