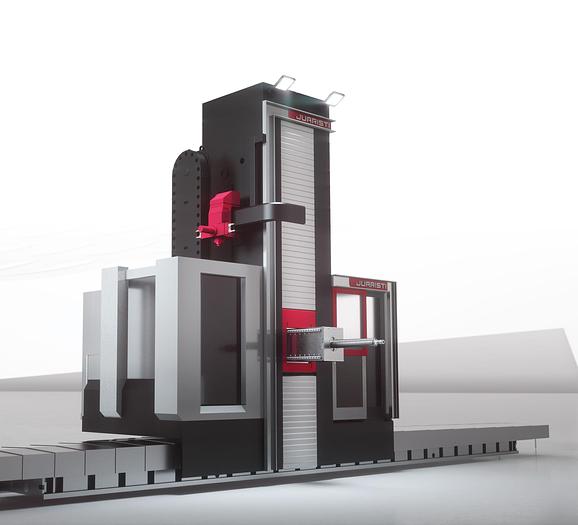

TRAVELLING COLUMN BORING – MILLING CENTER WITH CENTRAL HEAD Travelling column boring centers with exclusive design The MX series is a premium solution featuring precision, rigidity and dynamism, the result of more than 20 years of experience in designing this series. The “box in box” concept introduced for the first time by JUARISTI on this type of machine, with a symmetrical column and completely closed central head, provides the machine with optimum rigidity, accuracy and dynamics. Maximum precision thanks to the box-in-box design. Thermo-symmetric structure. 4-sided RAM and vertical stroke guiding. High dynamics (up to 30 m/min). Multiple multitasking options. Reduction of thermal distortion thanks to the thermo-symmetric structure. Double real-time geometrical compensation of the head + RAM assembly centre of gravity and RAM flexion. Ergonomic operator platform with three independent movements in X-Y-Z directions. Machining up to 7 m high, 5 m wide parts. Large RAM travels: 2,000 mm on the milling machine and 1,900+1,000 mm on the boring machine. Universal head ACD 60 kW Torque 2, 900 Nm – 3, 500 min-1| 40 kW Torque 1, 300 Nm – 6, 000 min-1. AV 4 Vertical Automatic Head 1ºx1º 60 kW 3,800 Nm 3,500 min-1. AOD Orthogonal Head 37 kW | 1,300 Nm | 5,000 min-1 | 60 kW | 2,900 Nm | 3,500 min-1. Boring bar of Ø130 / 160 / 180 / 205 mm. Rotary tables with 8 to 180 tonne capacity with up to 5,000 x 6,000 mm surface area. Can be supplied with turning and tilting table. Double real-time geometric compensation. Compatible with rotary tables, tool changers and automatic head magazines. ATC– Automatic Tool Changer type (30-120 chain type positions and up to 400 robot type positions). Head magazines with up to 10 automatic change positions. High machining power thanks to the closed Column-Headstock design and four-sided guided RAM. High performance due to powerful, cooled gearbox transmission. High power (40 and 96 kW) and high machining torque (1,300 to 8,650 Nm).

Specifications

ManufacturerJuaristi
ConditionNew
X – longitudinal columnmm
Y – vertical headmm
Z – cross rammm
Ram sectionmm
Boring bar diametermm
W- axial boring barmm
Head powerkW
Spindle speedmin-1
Spindle torqueNm
X, y, z, wm/min
