TL-S SERIES

TL-S SERIES

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

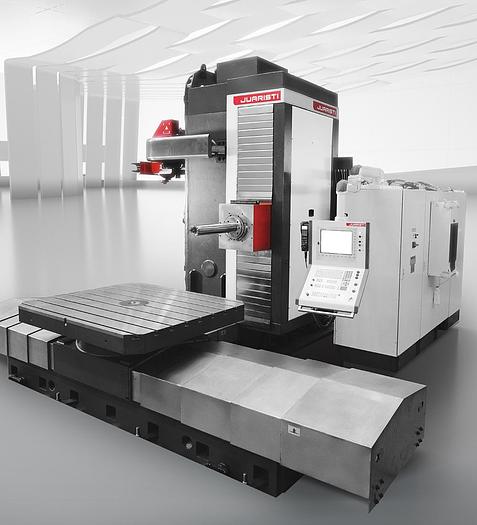

HORIZONTAL BORING MACHINE High dynamics horizontal Boring-Milling Centers High-performance horizontal boring machines. High dynamics horizontal boring machines equipped with a 110-130 mm boring bar and hydrostatic rotary table with a maximum 8 tonne capacity. This horizontal boring machine is a very productive solution at a very competitive price. It stands out for its high dynamics (30 m/min rapid feeds). Ideal option for boring operations. Quick return on investment. Optimum vibration damping: electro-welded structure filled with polymeric cement. Twin motor hydrostatic rotary table. ATC fixed to column. Compact configuration for small spaces. Cost-competitive option. Strokes of up to 3,000, 2,000 and 2,000 mm on the XYZ axes. Boring bar of 110- and 130-mm diameter. Rotary table with wide working space of up to 1,200×1,500 mm. Automatic pallet changer. Automatic tool change chain-type (up to 160 tools) or robot-type (up to 400) types. Rapid feeds up to 30 m/min.

Specifications

ManufacturerJuaristi
ConditionNew
X stroke – cross tablemm
Y stroke – vertical headmm
Z stroke – longitudinal columnmm
W stroke – axial boring barmm
Quick feedsm/min
Boring bar diametermm
PowerkW
TorqueNm
Rotation speedmin-1
Table/pallet sizemm
Load capacitykg
Automatic pallet changer
Chain type
Spindle coolant systembar
