TX-S SERIES

TX-S SERIES

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

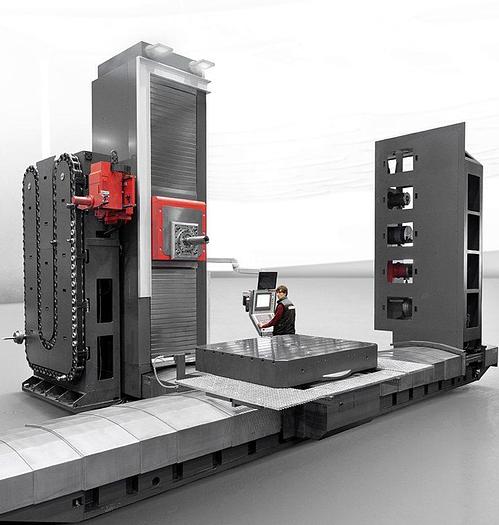

TABLE-TYPE MILLING-BORING CENTER Horizontal boring-milling centers High rigidity and precision thanks to its thermo-symmetrical structure. It stands out for its reliability and unbeatable performance. The TX series is one of the most recognisable symbols in the JUARISTI universe. We have a long track record of designing this type of solutions, which over the years have become one of the most sought after by our customers. This machine can successfully carry out boring and milling operations. Thermo-symmetric design with central head. Oversized cast iron structural components. Hydrostatic rotary table with double pinion system to eliminate blacklash. High-precision and high-rigidity linear guides. Multiple customisation and automation options. Oversized cast iron structure. Minimal thermal deformation ensured thanks to the thermo-symmetric column with centred head. Optimal head guiding and efficient force distribution. High-precision bearings. Vertical travel up to 2,500 mm (TX1), 3,000 (TX3) and 4,000 mm (TX7). AOD Universal spindle 1° x 1° | 0.001° x 0.001° | 40 kW | 6,000 min-1 | 60 kW | 3,000 Nm. AOD Orthogonal head 1ºx1º | 40 kW | 5000 min-1. Compact vertical head ISO 50 1º x 1º. Adaptable with boring bar, diameter 110-130 mm (TX1), 130-150 mm (TX3) and 150-180 mm (TX7). Hydrostatic rotary table with capacity from 8 ton (TX1) to 60 ton (TX7). Wide workspace of 1,600 x 2,000 mm (TX1), 2,000 x 2,500 mm (TX3) and 3,000 x 2,500 mm (TX7). Thermal sensors for real-time temperature monitoring. ATC chain type with 30-160 positions. ATC robot type up to 400 positions. Automatic Head Changer. Customizable with full enclosure, automatic door, roof and fume extraction system. Ergonomic operator platform: vertical and crosswise motion. High machining power thanks to the column-console design guided on all four sides. High performance thanks to the transmission through powerful cooled gearbox.

Specifications

ManufacturerJuaristi
ConditionNew
X – cross tablemm
Y – vertical headmm
Z – longitudinal columnmm
W- axial boring barmm
Boring bar diametermm
Head spindle powerkW
Spindle rotation speedmin-1
Table sizemm
Load capacitykg
Table rotation speedmin-1
X, y, z, wm/min
