BL SERIES

BL SERIES

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

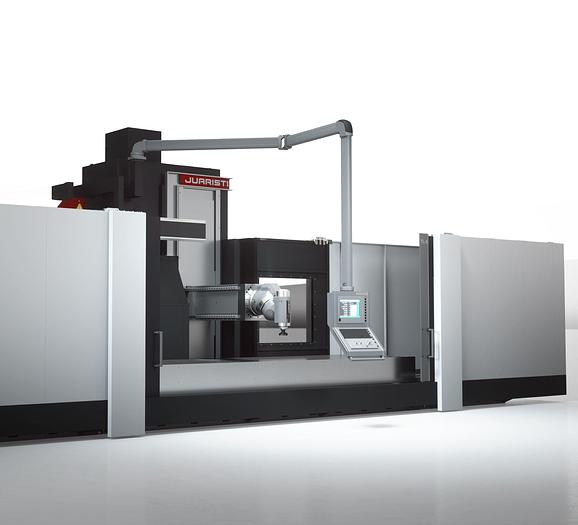

BED TYPE MILLING MACHINES Highly rigid and precise in small format The BL series achieves a fast return on investment thanks to its high performance and reliability. This bed type milling machine offers high dynamics and stability thanks to its oversized structural components and a large RAM, that makes the machine very rigid. It is a very flexible milling machine, capable of machining 3, 4 or 5 axes simultaneously. High cutting capacity in all types of materials. High main spindle power and torque. High dynamics due to linear guiding. Dual linear and hydrostatic RAM guiding. Integral enclosure with coolant and chip conveyor. Ability to machine 3, 4 or 5 axes simultaneously. Oversized structural components with large-sized linear guides. Great performance due to the oil mist lubrication system. Integral enclosure with integrated chip conveyor that guarantees total chip and coolant collection. Easy access to the work area through large sliding doors. Automatic Positioning Universal Head. Continuous Universal Head. Continuous Twist Head. Mechanical head equipped with 2 series of gearboxes with high torque up to 6,000 min-1, suitable for machining cast iron, carbon steel, alloy steel, stainless steel, etc. Electro-spindle head 12,000/18,000 min-1 for machining aluminium and light metals. Longitudinal table in the standard version and optionally rotary table. AHC- Automatic Head Calibration. AFC- Adaptive Feed Control. Teleservice for Remote Assistance. In-process measurement of parts via probes. Tool calibration system by probe / laser. ATC – Automatic Tool Changer (30-120 positions). HDS – Hydrostatic Damping System that eliminates vibrations and increases tool life significantly. 40 m/min feed speed thanks to oversized structural components with large 65- and 55-mm linear guides and 80/63 mm diameter ball screws. High spindle power of 40 kW and a 1,400 Nm torque.

Specifications

ManufacturerJuaristi
ConditionNew
X – table lengthmm
Y – cross rammm
Ram sectionmm
45º universal automatic headº
Continuous turning 5-axis headº
Mechanicalmin-1
Electro-spindlemin-1
X,y,zm/min
Bl1-mx1mmKg
Bl1-mx2mmKg
Bl1-mgxmmKg
