GHD Series

GHD Series

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

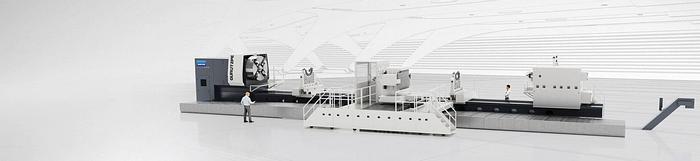

GURUTZPE’s horizontal GHD flat bed and hydrostatic guided lathes are based on double cast iron architecture, both hardened and rectified along their full length. The machining carriage consists of a hydrostatic guiding system, longitudinally and transversally, using “pump per pocket” hydrostatic technology, which guarantees unbeatable performance for rigidity, damping, positioning and durability. The best known guiding system for heavy precision machines. Main characteristics: Optimum architecture for large parts and tonnage. Superior rigidity, allowing unbeatable machining precision even for the most demanding jobs. High damping to absorb fluctuating loads from machining and thus ensure greater accuracy. Minimum energy consumption, due to negligible levels of friction. Higher positioning qualities due to the hydrostatic guiding system and avoiding stick-slip phenomena. Zero wear of the guiding system and, therefore, infinite durability, thanks to zero contact between the sliding surfaces (continuously controlled interstitial oil film). Excellent management of the chip generated. Easy access to all parts of the machine, for ergonomic operation and maintenance. Possibility of implementing all the machining modules on the carriage (turning, milling, grinding, boring, ATC…)

Specifications

ManufacturerGurutzpe
ConditionNew
Machining areaSwing over bed
Swing over carriageSoc
Distance between pointsLbc
HeadMotor power S1/S6
Motor torque s1/s6Tm
Range of speedsns
Spindle bore ∅∅sb
Tailstock centrePart weight e.p.
