MX SERIES

MX SERIES

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

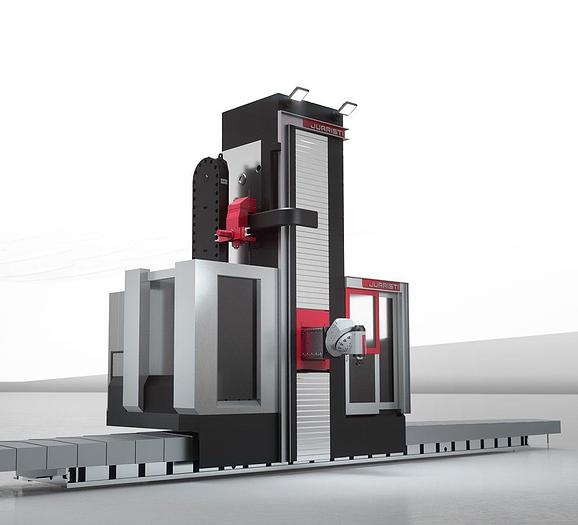

FLOOR TYPE MILLING MACHINE WITH CENTRAL HEAD Traveling column machine with exclusive design to improve performance The MX series is a premium solution featuring precision, rigidity and elevated dynamics, the result of more than 20 years of experience in designing this series. The “box-in-box” concept introduced by JUARISTI for the first time on this type of machine, with a symmetrical column and completely closed central head, provides the machine with optimum rigidity, accuracy and dynamics. Maximum precision thanks to the box-in-box design. Thermo-symmetric structure. High dynamics (up to 30 m/min). Vertical head travel and RAM four-side guided. Multiple multitasking options. Reduced thermal deformation thanks to the thermo-symmetric column’s and central head’s design. Ergonomic operator platform with three independent movements in X-Y-Z directions. Machining up to 7 m high, 5 m wide parts. Universal head ACD 60 kW Torque 2, 900 Nm – 3, 500 min-1| 40 kW Torque 1, 300 Nm – 6, 000 min-1. AV 4 Vertical Automatic Head 1ºx1º 60 kW 3,800 Nm 3,500 min-1. AOD Orthogonal Head 40 kW | 1,300 Nm | 5,000 min-1 | 60 kW | 2,900 Nm | 3,500 min-1. Rotary tables with 8 to 180 tonne capacity with up to 5,000 x 6,000 mm surface area. Can be supplied with turning and tilting table. Double real-time geometrical compensation of the head + RAM centre of gravity and RAM flexion. Compatible with a wide range of automation systems (head and tool changer, measuring probes, etc.). ATC– Automatic Tool Changer (30-120 positions for chain type and 400 positions for robot type). Head/accessory magazines with up to 10 automatic change positions. High machining power and efficient thanks to the closed Column-Headstock design and four-sided guided RAM. High performance due to powerful, cooled gearbox transmission. High power (40 and 96 kW) and high machining torque (1,300 to 8,650 Nm).

Specifications

ManufacturerJuaristi
ConditionNew
X – longitudinal columnmm
Y – vertical headmm
Z – cross rammm
Ram sectionmm
Fixed horizontal headmm
Head powerkW
Rotation speedmin-1
TorqueNm
X, y, z, wm/min
