VEGA 650X650 S-LINE

VEGA 650X650 S-LINE

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

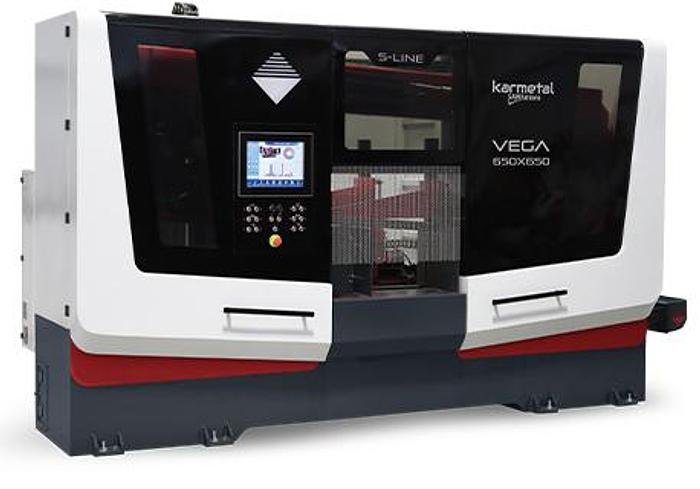

VEGA 650x650 S-LINE is a high performance autonomous band saw machine. It is has double column body moved by servo motor. The machine is designed with ergonomic details and technical solutions applied in consideration of user safety and comfort. VEGA 650x650 S-LINE is distinguished with its power as its smartness as well. 15 kW High torque main motor prevents loss of torque in neither low nor high frequency. On the other hand, servo controlled front-rear vises, 15” Industrial PC, remote control via WIFI and tis elegants design make it unique in its class. 1300 different material which are categorized in 6 differents standards are predefined on smart cutting system. By this way, the machine adjusts parameters automatically. Linear guideways on the machine have two servo moving vices provide perfect cutting precision. VEGA 650x650 S-LINE is ideal for solid material cut.

Specifications

ManufacturerKarmetal
ConditionNew
Main motor20 HP
GearboxBevel Helical PKD 3390 High Efficiency
Hydraulic motor3 HP
Coolant motor1/3 HP
Conveyor motor1/2 HP
Swarf brush motor1/3 HP
Material feeding stroke1 HP (Multi Indexing)
Servo feeder motor1 HP, 3.000 rpm
Bow servo motor1 HP, 3.000 rpm
Blade speed98-460 fpm
Blade dimensions20' 1/6" x 1.6" x 18" Gauges
Machine weight8.400 lbs
Machine dimensions6'6¾" x 12' 7.6" x 7'1"
