WOS 340x400

WOS 340x400

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

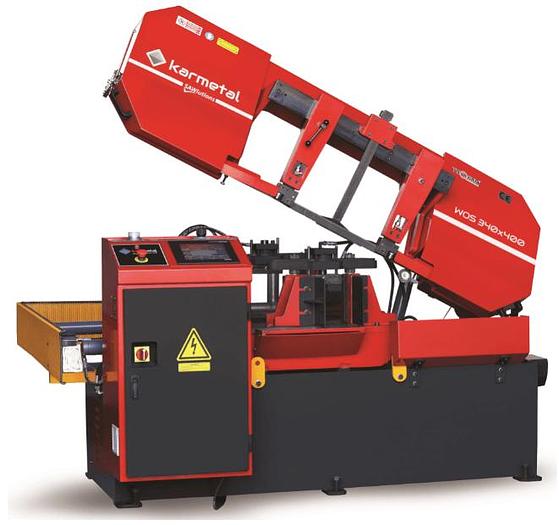

WOS 340X400 model is an automatic band saw machine with pivot type body design. The Machine is able to bundle cutting thanks to hydraulic top clamp which can be added as optional. Precision cutting capability has been gained with linear guides. The cut material can be easily tightened thanks to hydraulic vises automatically. After the length of the cut material and the amount of pieces to be cut are entered on the PLC control panel, the machine automatically adjusts the length to be cut with the help of an encoder and cuts in the amount entered. Feeder vices drive the material according to the set size automatically. 20 different cutting sizes can be entered on the screen. 50 different work lists can be saved to the control panel and saved work list can be used at any time. It is ideal for bundle cutting.

Specifications

ManufacturerKarmetal
ConditionNew
Main motor5.5 HP
GearboxBevel Helical PKD 2390 High Efficiency
Hydraulic motor1.5 HP
Coolant motor1/6 HP
Conveyor motor1/6 HP
Feeding stroke26.5" (Multi Indexing)
Servo feeder motor750 Watt. 3.000 rpm
Blade speed72 – 328 fpm
Blade dimensions14' 1 1/4" x 1.33" x 19" Gauge
Machine weight3.970 lbs
Machine dimensions81" x 51" x 63"
Working height27.5"
