KSA 350x450

KSA 350x450
Contact us for price
Bursa, Turkey
orCall Sean Walker 0833849326
Description

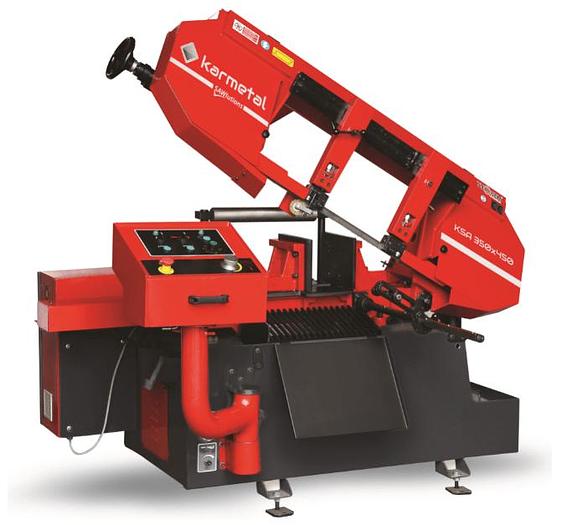

KSA 350X450 model is a semi automatic band saw machine with pivot type body design. The Machine is designed for straight cutting. The operator can easily tighten the material to be cut, thanks to the hydraulic vise. Material feeding and angle adjustment is done manually, its body rises itself hydraulically to the adjusted height after cutting.
Specifications
Manufacturer | Karmetal |
Condition | New |
Main motor | 5.5 HP |
Gearbox | Bevel Helical PKD 1390 High Efficiency |
Hydraulic motor | 1/2 HP |
Coolant motor | 1/8 HP |
Blade speed | 82 - 295 fpm |
Blade dimensions | 14'3 1/4" x 1.33" x 19" Gauge |
Machine weight | 2.190 lbs |
Machine dimensions | 45.3" x 85" x 47" |
Table height | 29.5" |
