KDG 400x610 DM

KDG 400x610 DM

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

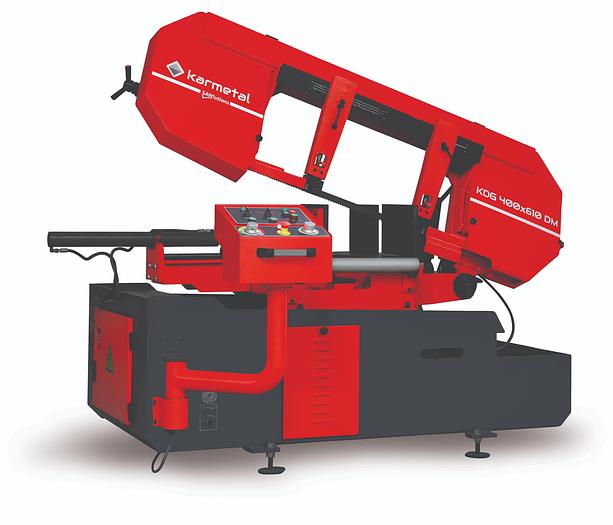

KDG 400x610 DM model is a miter cutting semi automatic band saw machine with pivot type body design. The machine, which has the feature of turning to angle in two directions, can miter cut from -45 ° to 60 °. The operator can easily tighten the material to be cut, thanks to the hydraulic vise. Material feeding and angle adjustment is done manually, its body rises itself hydraulically to the adjusted height after cutting.

Specifications

ManufacturerKarmetal
ConditionNew
Main motor5.5 HP
GearboxBevel Helical PKD 2390 High Efficiency
Hydraulic motor1/2 HP
Hydraulic tank capacity8 Liter
Coolant motor1/6 HP
Coolant tank capacity30 Liters
Blade speed82 – 295 fpm
Blade dimensions15'3" x 1.33" x 19" Gauge
Machine weight2.975 lbs
Machine dimensions59" x 88.5" x 55.1"
Table height29.1"
