OSA 350x450

OSA 350x450

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

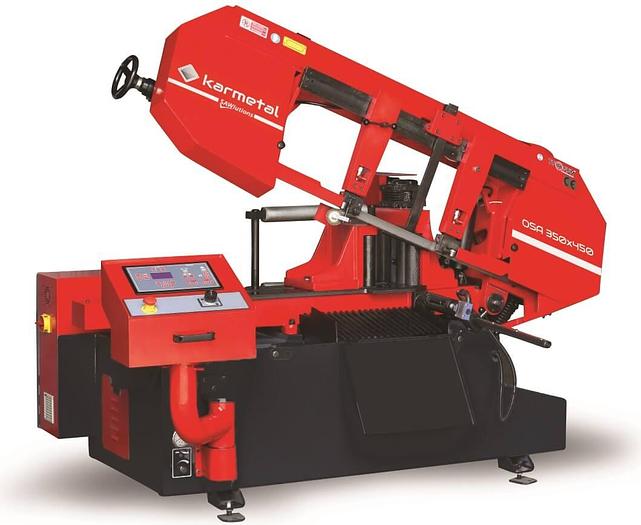

OSA 350X450 model is an automatic band saw machine with pivot type body design. The Machine is designed for straight cutting. Hydraulic vises are controlled automatically. After the length of the cut material is adjusted with the long material stopper ruler on the machine up to 60 cm, it can automatically cut the amount of pieces entered on the digital screen. Feeder vices drive the material according to the set size automatically. This model is ideal for users who cut to the same length.

Specifications

ManufacturerKarmetal
ConditionNew
Main motor5.5 HP
GearboxBevel Helical PKD 2390 High Efficiency
Hydraulic motor1/2 HP
Hydraulic tank capacity2.1 gallons
Coolant motor1/6 HP
Coolant tank capacity6.6 gallons
Blade speed82 - 295 fpm
Blade dimensions14' 3 1/4" x 1.33" x 19" Gauges
Machine weight2.193 lbs
Machine dimensions45" x 83" x 47"
Table height28.75"
