KDG 460x800 DM

KDG 460x800 DM

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

Description

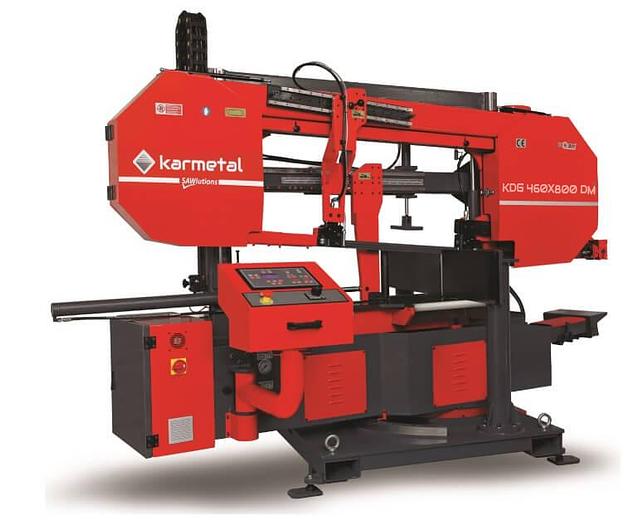

KDG 460X800 DM model is a semi automatic miter cutting band saw machine with double column body design. The machine, which has the feature of turning to angle in two directions, can miter cut from -45 ° to 60 °. Precision cutting capability has been gained with linear guides. Body up-down movements are done as hydraulic. The cut material can be easily tightened thanks to hydraulic vises. Feeding material is manuel. The machine is controlled on digital control panel

Specifications

ManufacturerKarmetal
ConditionNew
Main motor7,5 HP
GearboxPKD 3390 High Efficiency
Hydraulic motor2 HP
Hydraulic tank capacity25 Liters
Coolant motor1/6 HP
Coolant tank capacity30 Liters
Conveyor motor1/6 HP
Swarf brush motor1/6 HP
Blade speed82 – 295 fpm
Blade dimensions19'8 ¾" x 1.6" x 0.05"
Machine weight4.400 lbs
Machine dimensions4'11" x 9'10" x 6'6¾"
Table height31"
