KDG 350x570

KDG 350x570
Contact us for price
Bursa, Turkey
orCall Sean Walker 0833849326
Description

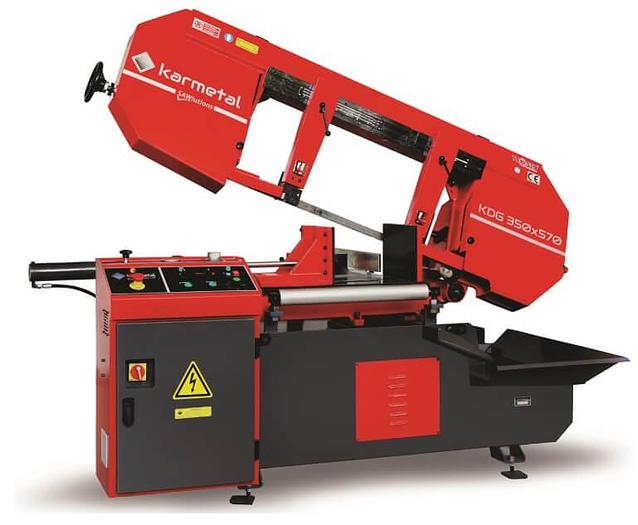

KDG 350x570 model is a miter cutting semi automatic band saw machine with pivot type body design. It is able to miter cut from 0 ° to 60 °. The operator can easily tighten the material to be cut, thanks to the hydraulic vise. Material feeding and angle adjustment is done manually, its body rises itself hydraulically to the adjusted height after cutting.
Specifications
Manufacturer | Karmetal |
Condition | New |
Main motor | 5.5 HP |
Gearbox | Bevel Helical PKD 2390 High Efficiency |
Hydraulic motor | 1/2 HP |
Hydraulic tank capacity | 8 Liter |
Coolant motor | 1/6 HP |
Coolant tank capacity | 30 Liters |
Blade speed | 82 - 295 fpm |
Blade dimensions | 14'3 1/4" x 1.33" x 19" Gauge |
Machine weight | 2.513 lbs |
Machine dimensions | 55" x 87" x 47" |
Table height | 29.1" |
