ODG 350x400 ENC

ODG 350x400 ENC

Contact us for price

Bursa, Turkey

orCall Sean Walker 0833849326

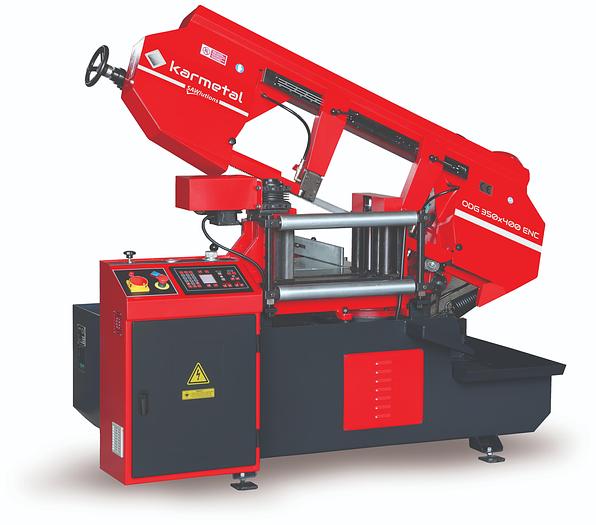

ODG 350X400 ENC model is an automatic miter cutting band saw machine with pivot type body design. It is able to miter cut from 0 ° to 60 °. Hydraulic vises are controlled automatically. After the length of the cut material and the amount of pieces to be cut are entered on the ENC control panel, the machine automatically adjusts the length to be cut with the help of an encoder and cuts in the amount entered. Feeder vices drive the material according to the set size automatically. 20 different cutting sizes can be entered on the screen. It is ideal for users who want to make serial cuts in different lengths.


Main motor5.5 HP
GearboxBevel Helical PKD 2390 High Efficiency
Hydraulic motor1/2 HP
Coolant motor1/6 HP
Blade speed82 - 295 fpm
Blade dimensions14'3 1/4" x 1.33" x 19" Gauges
Machine weight2.975 lbs
Machine dimensions55" x 87" x 47"
Table height29.1"
